Epson Australia
Epson SureColor F560
EP-SCF560
$4,318
Please choose the option you would like and add it to your cart
PrecisionCore Micro TFP Printer Highlights
- Quality Imaging: PrecisionCore Micro TFP head with VSDT & Precision Dot for crisp lines, rich halftones & a vibrant colour gamut using UltraChrome DS CYMK ink.
- Easy & Flexible Operation: Supports roll media & pop-up multi-sheet feeder, touchscreen control panel, and bundled Edge Print Pro software.
- Low Running Cost: Ultra-low power consumption and refillable ink tank system with cost-effective bottled ink.
- High Reliability: Backed by a comprehensive manufacturer warranty, extendable to 3 years with optional CoverPlus.
- Easy Installation: Compact footprint, shipped with over 1 L of ink and multiple media packs for immediate setup.
- Flexible Connectivity: Wi-Fi, Ethernet, and USB interfaces for seamless integration into any workflow.
Price excludes tax
SureColor F560 Feature Highlights

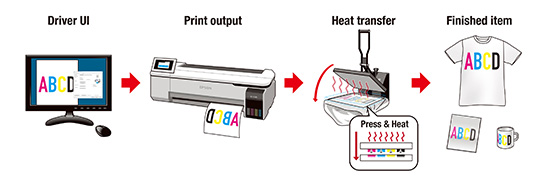

Complete Dye Sublimation Platform
Built for outstanding image quality, low running costs, and high reliability, the F560 ships as a full solution with software, ink, and media to start producing custom merchandise immediately.
Flexible Media Handling
Supports both roll and sheet stocks with pop-up feeder, roll spindle, and integrated auto-cutter. Ideal for low-volume or ad-hoc production with a wide range of heat presses.
Outstanding Print Quality
PrecisionCore™ TFP head with micro-nozzles and Epson Precision Dot delivers ultra-high resolution, vibrant density, and enhanced tonal expression across multiple print modes.
Superior UltraChrome DS Ink
Advanced CYMK Dye Sub ink provides a wide gamut, high dMax, and excellent wash/UV fastness. Formulated without Diethylene Glycol for safe use and certified Oeko-Tex Eco Passport®.
Efficient & Reliable Operation

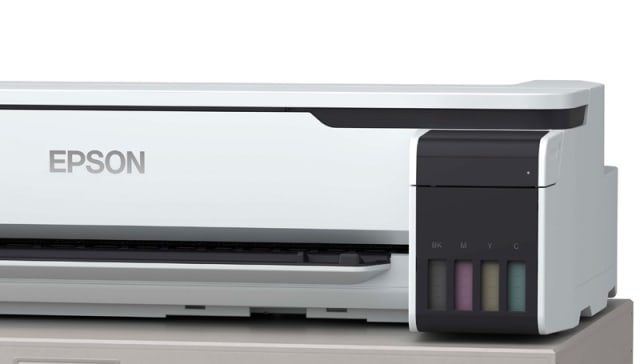

Continuous Ink Supply System refills on the fly with cost-effective bottles. Low-power PrecisionCore engine and integrated help LCD ensure dependable, low-cost production.
Compact & Easy to Install
With a footprint under 0.5 m², the F560 fits desktops or optional floor stands. Ships with ink, media, and driver software for quick setup and seamless integration.
1) Handle Dye Sublimation ink with care before heat-fixing.
2) Certified safe by Oeko-Tex Eco Passport® for adults & babies.
3) Requires PC, graphic software & compatible heat press; see warranty details.
SureColor F560 Specifications
| FABRIC & MERCHANDISE - PRINTER | |
|---|---|
| Product Name | SureColor F560 |
| SIZE | |
| Max Media Width | 24 inch wide (610 mm) |
| PRINT TECHNOLOGY | |
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni- & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 2400 × 1200 dpi |
| INK SYSTEM | |
| Family | Epson UltraChrome® Dye Sublimation |
| Type | Dye Sublimation (CMYK) |
| Supply | 4 × 106 ml Tank System |
| Refills | 140 ml Bottles |
| PERFORMANCE | |
| Fast Fabric | 21 m²/hr – 62 s per A1 (2 pass @ 600×1200 dpi) |
| Standard Fabric / Fast Rigid | 7.5 m²/hr – 208 s per A1 (7 pass @ 1200×1200 dpi) |
| Max Quality | 4.5 m²/hr – 350 s per A1 (12 pass @ 2400×1200 dpi) |
| Figures represent print times for test image on Epson Multi-Purpose DS Paper using Epson Edge Print. Throughput varies by PC spec, RIP, workflow, network, file format, image content, media, print mode, Auto-Take-Up & Heater activation. | |
| MEDIA SUPPORT | |
| Handling | Roll & sheet media with auto-switching |
| Roll Format | Epson General Purpose Transfer Paper (single roll with spindle loading) |
| Sheet Format | Epson General Purpose Transfer Paper (A3/A4, 50-sheet pop-up feeder) |
| Minimum Margins | 3 mm all sides (45 mm top & 15 mm bottom for optimum quality) |
| Output | Single sheet with auto-cutter & hold on exit; Supplied with A4/A3 output tray |
| OPERATION | |
| Control Panel | 4.3” Colour LCD touchscreen |
| Interface | USB 3.0, Ethernet 10/100/1000Base‑TX, Wi‑Fi & Wi‑Fi Direct |
| Memory | 1 GB RAM |
| Included Software (Windows) | Printer Driver, EpsonNet Setup/Print/Config, Software Updater, LFP Print Plug-in for Office & Edge Print on CD; Firmware Updater, Setup Manager & Accounting Tool via web |
| Included Software (Mac) | Printer Driver, EpsonNet Config, Software & Firmware Updater via web |
| System Requirements | Windows 10/8.1/8/7 (32/64‑bit; 64‑bit for Edge Print), Core 2 Duo 3.05 GHz+, 2 GB RAM (4 GB rec.), 32 GB HDD (250 GB rec.); Mac OS X 10.7/10.12+, Core 2 Duo 3.05 GHz+, 1 GB RAM, 32 GB HDD (250 GB rec.) |
| IMPORTANT NOTICE: Driver compatibility issues may exist with Windows ARM 64 processors. Epson updates expected by early 2026; interim use not recommended. | |
| ENVIRONMENTAL | |
| Dimensions & Weight | 970 × 245 × 577 mm; 29 kg (no consumables/stand/output tray, ASF closed) |
| Power Supply | AC 220–240 V, 50/60 Hz, 1.4 A |
| Operating Temp | 10–35 °C (15–25 °C rec.) |
| Humidity | 20–80% RH (40–60% rec.), no condensation |
| Power Consumption | 22 W operating, 8 W standby, 1.6 W sleep |
| Noise | 49 dB |
| Operational Space | Desktop: 1020×395×1035 mm; Floor stand: 1020×1078×1000 mm (plus heat press space) |
| SHIPPING INFO | |
| Packaging | Printer: 1106×718×558 mm, 50 kg; Ink & Media Pack: 450×250×250 mm, 5 kg |
| What's in the Box | Printer, 2 × Ink bottles, 2 × Maintenance tanks, Sample media pack, Power cord, Setup guide, Software & user manual CD |
| Installation & operation require a heat press; consult authorised dealer for models & pricing. Some assembly & configuration needed—setup guide included. | |
| CONFIGURATION OPTIONS | |
| Models | SCF5601YR: Standard with 1 yr warranty; SCF5603YR: +2 yr CoverPlus (3 yr total) |
| ACCESSORIES & OPTIONS | |

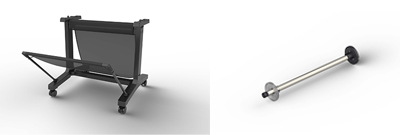

| Optional Accessories | C12C933151: Stand with media bin; C12C933211: Roll media spindle |
| CoverPlus Packs | 1YWF560: 1 yr on-site; 2YWF560: 2 yr on-site |
| SERVICE & SUPPORT | |
| 1 yr warranty covers labour & non-consumable parts (incl. heads, excl. tank system). Free on-site service in metro areas; regional subject to travel charge. Extend CoverPlus up to 3 yrs within 365 days of purchase. Authorised dealer support only. Warranty may be void if maintenance not performed or non-Epson consumables used. | |
| Epson products require regular use; not designed for mobile operation—remove ink before transport. Store unopened ink in cool, dark place; consume within 1 mo after loading; prints should be sublimated within 1–2 days. Not suitable for continuous high-volume production; refer to warranty for life rating limitations. | |
