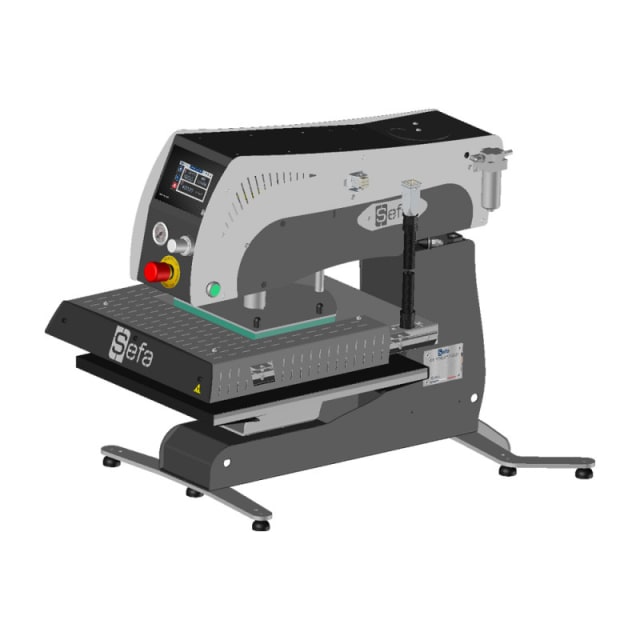

Sefa Rotex Air Pro swing press
ROTEX AIR PRO Full-Auto Swing Press
The ROTEX AIR PRO is an air-operated, full-auto swing press ideal for medium-volume flex, screen printing transfers, textile & rigid sublimation, DTG, and laser printing—delivering unmatched comfort and precision.
Key Features
Auto-Open & Swing
Air-operated auto-open, auto-close, and auto-swing for seamless workflow.
High Heating Power
Rapid heating ensures efficient DTG pre-treatment drying and reliable transfers.
Quick-Change Platens
Swap Nomex® platens (40×50 & 45×55 cm) in seconds—no tools required.
Front & Rear Loading
Thread garments from either side for maximum accessibility and speed.
Pre-Heat Function
Built-in pre-heat timer guarantees consistent substrate temperature before pressing.

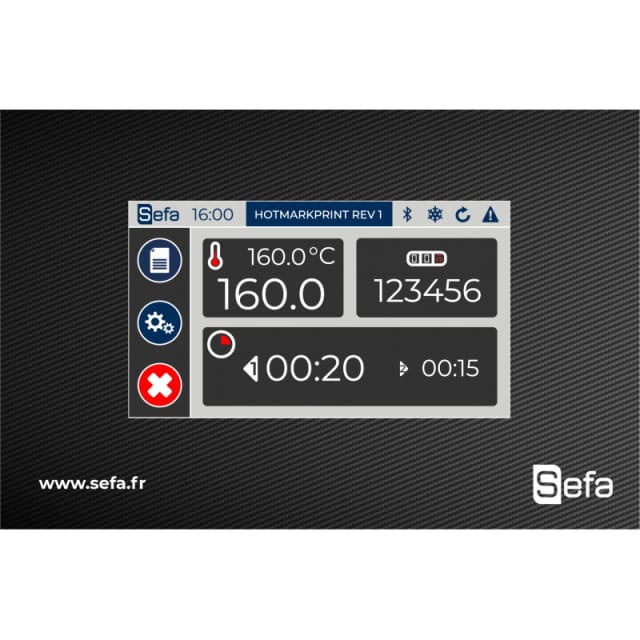

Advanced Electronics
Adaptive PID control with 10 recipe memory, eco/standby modes, and dual counters.
Specifications
| Parameter | Detail |
|---|---|
| Type | Pneumatic |
| Operation | Swing – Rotating Plate |
| Platen Size | 40 × 50 cm / 16 × 20″ |
| Max Thickness | 17 mm |
| Weight | 81 kg / 179 lbs |
| Pressure | 400 g/cm² |
| Max Temperature | 220 °C / 429 °F |
| Power | 3 200 W |
| Power Supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 14 A |
| Applications | ChromaLuxe, Flex, DTG, Pretreatment, Rigid/Textile Sublimation, Screen Printing, Laser Transfer |
| Dimensions (W×D×H) | 621 × 847 × 572 mm / 24 × 33 × 22″ |
Get Your Resources
Download the latest technical datasheet or access the complete ROTEX AIR PRO user manual below.
Download Datasheet 📄 Open Manual 📘
