Sefa Duplex Mini Pro Duel swing press

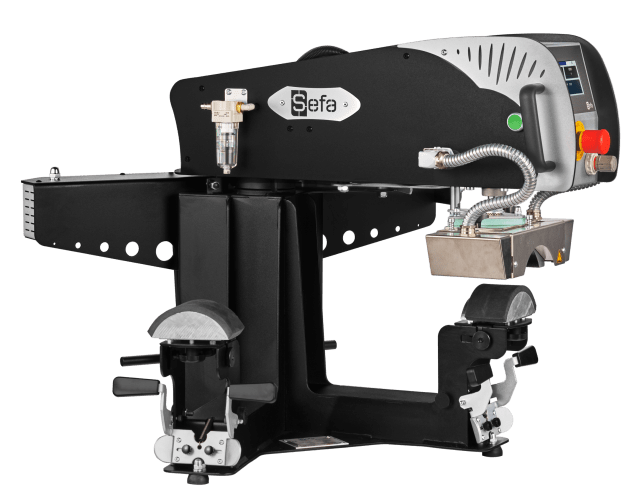

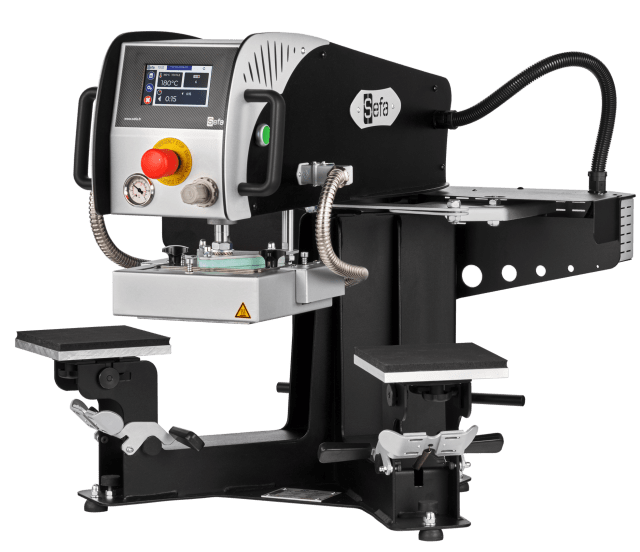

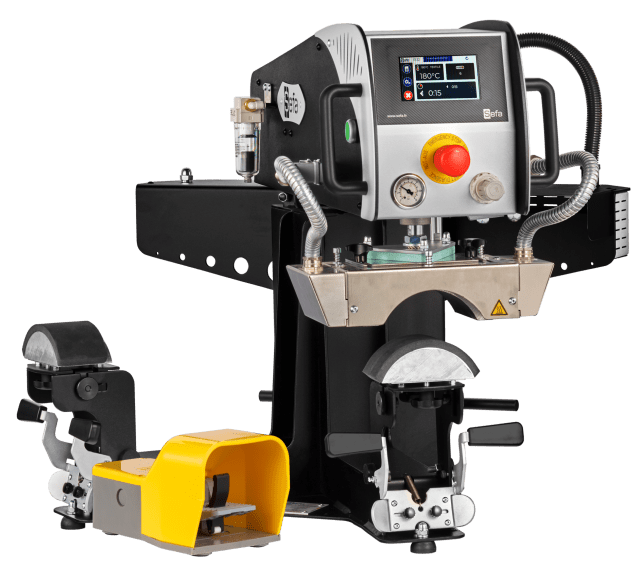

Duplex Mini Pro Cap & Logo Press
The Duplex Mini Pro is a pneumatic dual-platen, auto-shuttle cap and logo press designed for high-volume flex transfers, screen-printing logos, and sublimation on caps. Engineered for durability and precision in every cycle.
Key Features
Auto Open & Close
Effortless auto-open and close cycles for rapid, hands-free operation.
Cap Tensioners
Integrated tensioners ensure perfect cap alignment and tautness every time.
Auto-Shuttle Function
Automatically moves between platens, allowing background tasking on the free platen.
Multi-Timer Control
Choose from up to four independent timers for diverse materials and techniques.
Touch-Screen Interface
User-friendly touchscreen with adaptive PID regulation and 10 recipe menus.
Energy & Standby Modes
Eco and standby modes reduce power consumption without sacrificing performance.
Specifications
| Parameter | Detail |
|---|---|
| Type | Pneumatic |
| Operation | Swing – Rotating Plate |
| Platen Size | 40 × 50 cm / 16 × 20″ |
| Max Thickness | 17 mm |
| Weight | 81 kg / 179 lbs |
| Pressure | 400 g/cm² |
| Max Temperature | 220 °C / 429 °F |
| Power | 3 200 W |
| Power Supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 14 A |
| Applications | ChromaLuxe, Flex, DTG Pretreatment, Rigid/Textile Sublimation, Screen Printing, Laser Transfer |
| Dimensions (W × D × H) | 621 × 847 × 572 mm / 24 × 33 × 22″ |
Download Resources
Grab the latest Duplex Mini Pro datasheet or view the full user manual below.
Download Datasheet 📄 View Manual 📘
