Sefa Clam Clam PRO V5 2 POS
Clam Pro v5 2POS Heat Press
Featuring double-position switching for high-to-low pressure without wheel adjustment, the Clam Pro v5 2POS excels in medium-volume textile marking, sublimation on rigid substrates, DTG drying, and laser printing. Built on a robust auto-open frame with drawer plate for seamless production.
Key Features
Auto-Open Drawer
Effortless auto-open frame with drawer-style lower plate for fast loading.

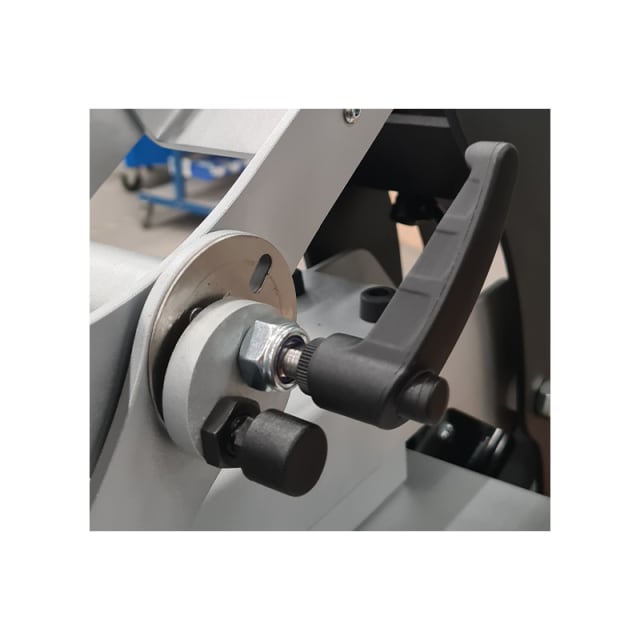

Double Position
Switch from high to low pressure without touching the pressure wheel.
Quick-Change Platens
Swap platens in seconds for caps, textiles, and rigid substrates.
Dual Timers
Main and pre-heat timers give precise control for varied processes.
Dual Counters
Keep separate counts for pre-treatment and printing cycles.
French Engineering
Designed and manufactured in France with robust European quality.
Specifications
| Parameter | Detail |
|---|---|
| Type | Electromagnetic |
| Operation | Slide – Tray with drawer, Clam – Portfolio Opening |
| Platen Size | 40 × 50 cm / 16 × 20″ |
| Max Thickness | 15 mm |
| Weight | 58 kg / 128 lbs |
| Pressure | 330 g/cm² |
| Max Temperature | 220 °C / 429 °F |
| Power | 3 200 W |
| Power Supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 14 A |
| Applications | Flex, DTG Pretreatment, Textile & Rigid Sublimation, Laser Transfer, Screen Printing |
| Dimensions (W×D×H) | 969 × 990 × 453 mm / 38 × 39 × 18″ |
Download the Clam Pro V5 Manual
Access detailed technical specifications and operating instructions in the official user manual below.
View User Manual 📘
