Epson DTG-F2260
Epson SureColor F2260
- PrecisionCore MicroTFP: VSDT & Precision Dot imaging for ultra‑sharp lines, smooth halftones & rich colour
- DTG & DTF Flexibility: Produce direct‑to‑garment or film transfers in one robust platform
- Reliable Uptime: Auto head‑height, cap‑washing, nozzle monitoring & white ink recirculation
- Certified Safe Prints: Compliant with Oeko‑Tex® & GOTS‑ECOCERT for garments of all ages
- Intuitive Control: Large touch panel & Garment Creator software for seamless operation
- Production‑Grade Design: Pouch‑based inks, CoverPlus warranty & Epson Cloud Solution PORT
Key Features
Next‑Gen DTG & DTF
Third‑generation desktop DTG meets full DTF capabilities—print directly on garments or via film. Ships in CMYK + dual white for ultimate flexibility and vibrant transfers.

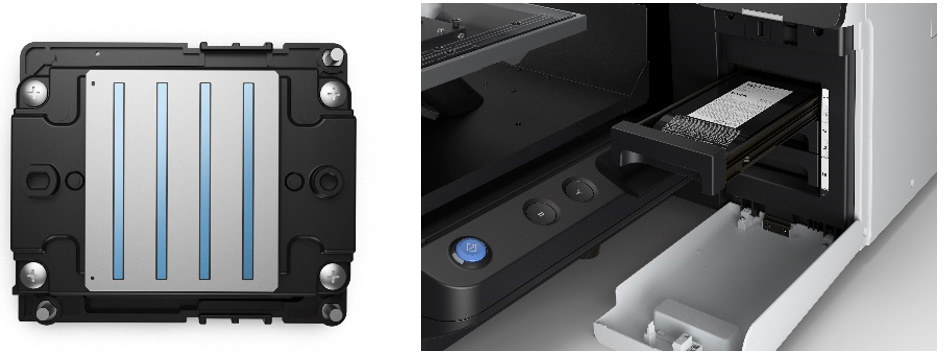

Ergonomic PrecisionCore Head
Auto head‑height adjustment and refined ergonomics ease loading. PrecisionCore® MicroTFP & UltraChrome DG2 inks deliver super‑fine lines, smooth gradations & solid fills.
Commercial Reliability
Built for medium‑volume production with auto‑cleaning, nozzle management & active error monitoring. Garment Creator software harnesses the head’s power for flawless prints.
UltraChrome DG2 Ink
Low‑toxicity formula resists bleed & fading, meeting Oeko‑Tex® Eco Passport & GOTS‑ECOCERT standards for adult, children & baby garments.

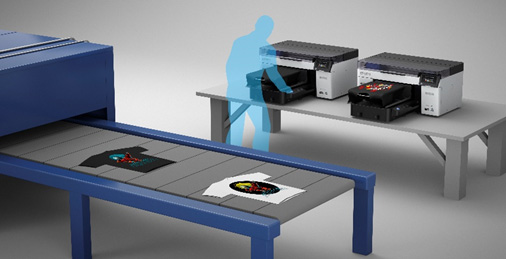

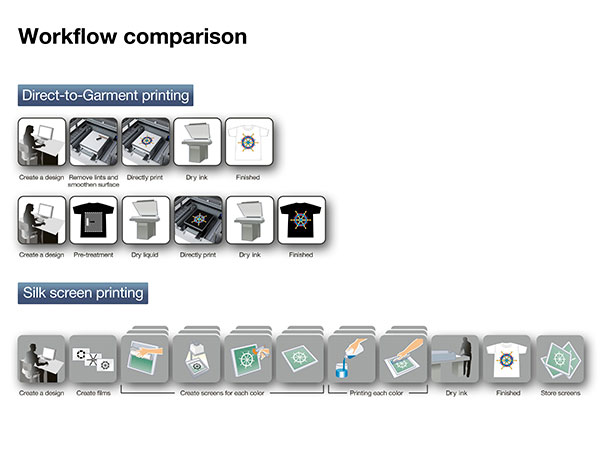

Streamlined DTG Workflow
Replace screen‑printing with a clean, digital process. Print art directly or via film transfers for cost‑effective, just‑in‑time production.

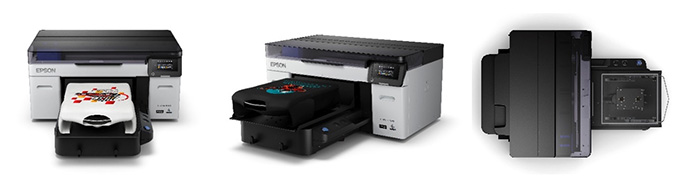

Optimized Enclosure

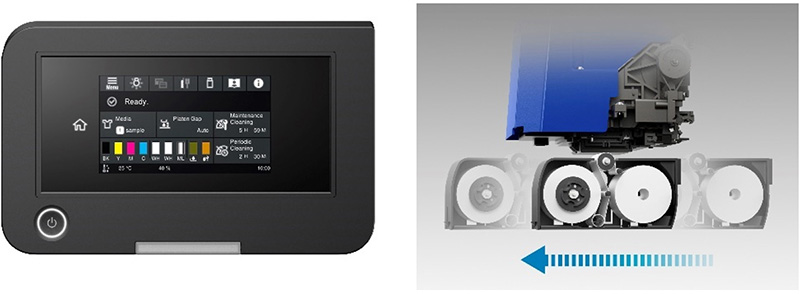

Rotatable 90° for door‑width delivery. Flat sides, see‑through platen, lit interior and 4.3″ touch panel for ergonomic control and easy setup.

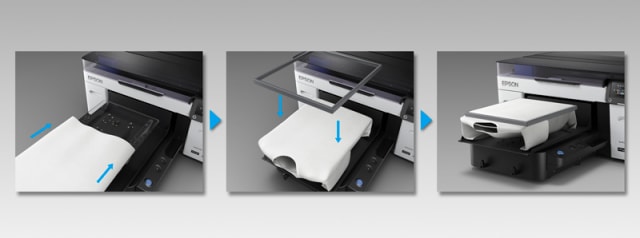

Frame & Frameless Output
Quick‑swap between framed or frameless loading with replaceable grip pads. Tool‑free macro height and self‑cleaning head ensure reliable production.
Flexible Platen Options
Standard shirt platen included; additional platens for sleeves, pockets, child sizes and oversized garments. Supports mixed fabrics up to 25 mm thick.
Efficiency & Support
Fast 28 s (light shirt) / 52 s (dark shirt) speeds, cost‑effective 800 ml pouches, up to 5‑year CoverPlus, and remote diagnostics via Epson Cloud Solution PORT.
Specifications
| General | |
|---|---|
| Product Name | SureColor F2260 |
| Max Print Area | 406 × 508 mm (with optional large platen) |
| Form Factor | Desktop |
| Print Technology | |
| Printhead | 1.33″ PrecisionCore® MicroTFP with VSDT |
| Print Modes | Uni‑ and bi‑directional |
| Nozzle Configuration | 400 nozzles × 8 lines |
| Max Resolution | 1200 × 1200 dpi |
| Min. Droplet Size | 12.8 pl |
| Features |
|
| Ink System | |
| Ink Family | Epson UltraChrome® DG2 |
| Technology | Direct-to‑garment & direct-to‑film support |
| Formulation | All‑pigment |
| Loading | Pouch‑based (6 × 800 ml ink, 1 × 800 ml maintenance) |
| Configurations |
|
| Performance | |
| Standard 5‑colour Speeds |
|
| HS 4‑colour Speeds |
|
| Media Support | |
| Direct-to‑Garment |
|
| Direct-to‑Film | Compatible with third‑party films & powders (test brands first) |
| Max Thickness & Weight | 27 mm, 1.5 kg per item |
| Platen Print Areas |
|
| Operation | |
| Control Panel | 4.3″ colour LCD touch |
| Interface |
|
| Memory | 1 GB |
| Software | Driver, Garment Creator 2, Photoshop plugin, EpsonNet tools, ECSP, Firmware updater |
| Environmental | |
| Temperature | 10 °C to 35 °C |
| Humidity | 20–80% (no condensation) |
| Power | 110–240 V AC, 50/60 Hz, 3.4–1.6 A |
| Install Space | 1000 × 1500 × 800 mm (W×D×H) |
| Recommended Table | 600–800 mm high, ≥110 kg capacity |
| Power Consumption | 46 W operating, 30 W ready, 7 W sleep |
| Noise | 37 dB |
| Physical | |
| Dimensions & Weight | 981 × 499 × 1361 mm (W×H×D), 95 kg |
| Packaging | 1434 × 897 × 1209 mm, 143 kg |
| What's in the Box | |
| Printer, power cord, waste ink bottle, 5‑colour ink set (4.8 L), pre‑treat (20 L), maintenance liquids & kits, medium platen, grip pad, flattening tool, cleaning kit, setup guide. Software via web download; ECSP activation requires internet. | |
| System Requirements | |
| PC/Mac with Intel i7 8th gen or better, ≥2 GB RAM (16 GB rec.), ≥32 GB SSD, Win 8.1 64‑bit/Mac OS 10.12+, monitor ≥1024 × 768. Heat press & pretreat equipment recommended. | |
| Configuration Options | |
| |
| Accessories & Options | |
| |
Download the F2260 Brochure
Get the complete Epson SureColor F2260 datasheet with detailed specifications, performance charts, and accessory options. Perfect for planning your installation and workflow.
Download PDF Datasheet
