Download the F160 Datasheet
Explore detailed specifications, features, and performance insights for the SureColor F160 printer. Get your free PDF brochure now.
Download Brochure (PDF)
Epson Australia
SureColor F160 - A4
EPSCF160
$1,495
Please choose the option you would like and add it to your cart
A4 Dye Sublimation Printer
- Quality Imaging: PrecisionCore Micro TFP head with VSDT & Precision Dot for fine lines, rich halftones & consistent colour
- Easy Operation: Intuitive interface & driver support for common graphic software
- Low Running Cost: Ultra-low power draw & refillable ink tank system with cost-effective bottled ink
- High Reliability: Comprehensive manufacturer warranty with optional CoverPlus up to 5 years
- Compact & Ready: Space-saving design, supplied with ink & media for quick setup
- Flexible Connectivity: Wi-Fi, Ethernet & USB support for seamless integration
Price excludes tax
SureColor SC‑F160 Key Features
Compact, All‑In‑One Design
The SC‑F160 is a desktop‑friendly dye sublimation printer complete with ink, media, and a convenient Continuous Ink Supply System (CISS). Ideal for low‑volume custom merchandise and décor production, it fits into any workspace with ease.
Outstanding Print Quality

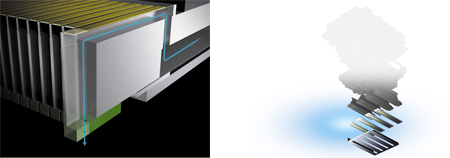

Featuring an Epson PrecisionCore™ Micro TFP print head with VSDT and Precision Dot processing, the F160 delivers pin‑sharp lines, smooth halftones, and vibrant colour. Multiple print modes let you balance speed and fidelity for art, photography, or merchandise.

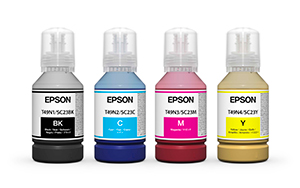

Advanced UltraChrome™ Dye Sub Ink
The four‑colour UltraChrome™ ink system offers a broad gamut and excellent durability. Sublimated images resist fading, abrasion, and perspiration, and meet the Oeko‑Tex Eco Passport® standard for safe use on textiles.
Flexible, Mess‑Free Workflow

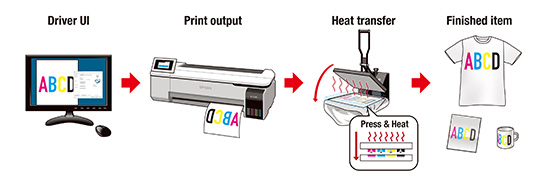

Dye sublimation replaces screen printing for short-to-medium runs, reducing labour, materials, and waste. Print on polyester fabrics or coated substrates, then transfer with any compatible heat press for fast, turnkey production.
Low Running Cost
Equipped with a refillable 140 ml bottle system, ultra‑efficient ink usage, and low power consumption modes, the F160 keeps your operating expenses to a minimum, letting you focus on creativity.

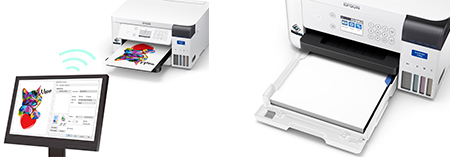

Compact & Connected
With a footprint under 0.15 m², Wi‑Fi, Ethernet, and USB support, plus easy driver integration with graphic software, the SC‑F160 is ready to plug into any Windows or Mac workflow.
SureColor F160 Specifications
| FABRIC & MERCHANDISE PRINTER | |
|---|---|
| Product Name | SureColor F160 – A4 |
| PRINT TECHNOLOGY | |
| Print Head | PrecisionCore TFP with VSDT |
| Nozzle Configuration | 400 Black + 128 each Cyan, Magenta, Yellow |
| Max Resolution | 600 × 1200 dpi |
| Min Drop Size | 3.8 pl |
| INK SYSTEM | |
| Family | Epson UltraChrome® Dye Sublimation |
| Type | Dye Sublimation (CYMK) |
| Supply | 120 ml Black + 60 ml each C, Y, M via CISS tank |
| Refills | 140 ml bottles |
| PERFORMANCE | |
| Production Speed | 65 s (A4 test sample) |
| Quality Mode | 152 s (A4 test sample) |
| MEDIA SUPPORT | |
| Media Type | A4 Epson General Purpose Dye Sub Paper |
| Minimum Margins | 3 mm all sides |
| Loading | 150‑sheet input tray |
| OPERATION | |
| Control Panel | Tilt-adjustable 2.4” colour LCD with buttons & integrated help |
| Interface | Ethernet 10/100Base-TX, Wi-Fi (recommended), USB 2.0 |
| Memory | 132 KB |
| Software (Windows) | Driver, EpsonNet Setup/Print/Config, Firmware & Software Updater, Device Admin |
| Software (Mac) | Driver, EpsonNet Setup/Config, Firmware & Software Updater |
| System Requirements | Windows XP/7/8/10 (32/64 bit), Mac OS X 10.6.8+ |
| ENVIRONMENTAL | |
| Dimensions & Weight | 375 × 347 × 187 mm; 4.6 kg (no ink/media) |
| Power | 220–240 V AC, 50/60 Hz, 0.2 A |
| Operating Temp | 10–35 °C (15–25 °C recommended) |
| Humidity | 20–80% RH (40–60% recommended) |
| Power Consumption | 13 W operating, 4.1 W ready, 0.7 W sleep |
| Noise | 53 dB |
| Operating Space | 375 × 503 × 187 mm (recommended); extra for heat press |
| SHIPPING INFO | |
| Packaging | Printer: 515×435×278 mm, 7.2 kg; Ink & Media Pack: 450×250×250 mm, 5 kg |
| What's in the Box | Standard Pack: Printer, 2× Ink bottles, 2× Maintenance tanks, 3× A4 media packs, cables, guide, CD Basic Pack: Printer, 1× Ink bottle, 1× Maintenance tank, 2× A4 media packs, cables, guide, CD |
| CONFIGURATION OPTIONS | |
| Options | SCF1601Y/3Y/5Y (Standard Pack + CoverPlus 1–5 yrs) SCF1601YB/3YB/5YB (Basic Pack + CoverPlus 1–5 yrs) |
| ACCESSORIES & SERVICE | |
| CoverPlus Packs | YR2F160–YR5F160 for on-site service years 2–5 |
| Warranty & Service | 1 yr parts/labour; optional CoverPlus up to 5 yrs; authorised dealer service |
