Aeoon Technologies GMBH

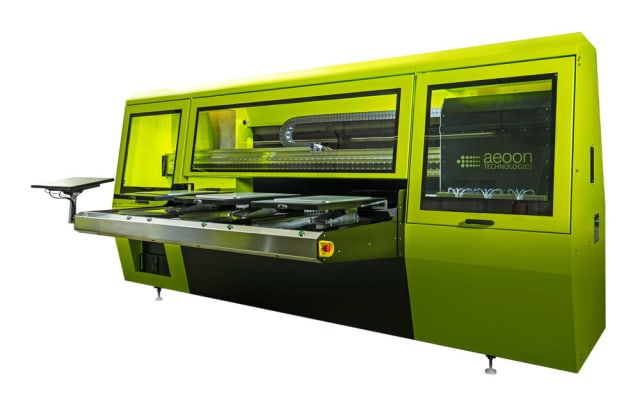

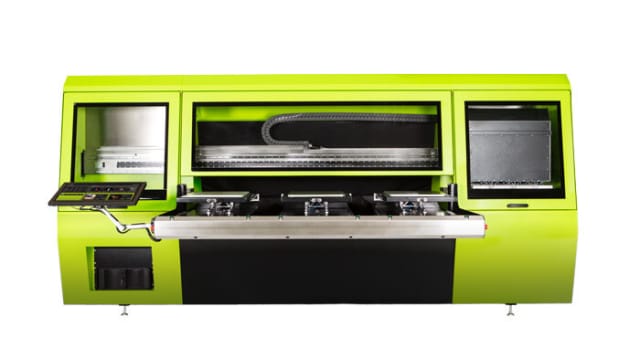

Aeoon-Kyo DTG

AKYO
Login for pricing

    Kyo & Compact PLUS Series

    Same style, better content!

    Press and print in one go! Our new aeoon PLUS Series takes your DTG production to the next level by combining high-speed printing with a fully integrated heat press.

    Pre-press, intermediate-press, or post-press your garments seamlessly—these turnkey machines deliver everything a modern DTG business needs for flawless, wash-resistant results.

    Key Features

    🚀
    Fastest return on investment with excellent capacity utilization
    ⚡
    Fastest DTG printer on the market
    🕒
    24/7 high-performance production in shift operation
    🔗
    Integrated OPC-UA interface for seamless workflows
    🧩

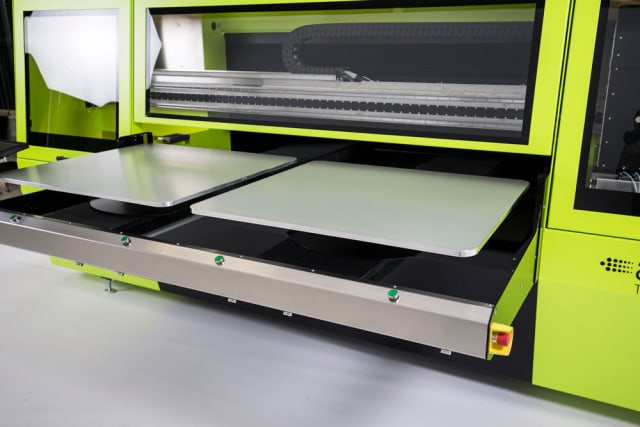

    Wide range of pallets, including special applications
    📐
    Max. print size 200 × 98 cm

    Sample Prints & Applications

    Blueface print
    Black hoodie print
    Sleeve print sample
    Gold necklace print
    Jeans apron print
    Monkey Anarchy print
    Citytrip white shirt
    Lion print
    Colorblocks print
    Kyo Series Kyo PLUS Series
    Industrial printheads: Kyocera: 4, 8 or 12 Kyocera: 8 or 12
    AHP – Heat Press: No Integrated per station;
    Press size: 40 × 50 cm (~16 × 20 in)
    Print stations: 2 or 3 3
    Color channels: CMYK (4 heads)
    CMYK + KYMC, CMYK + 4 White (8 heads)
    CMYK + KYMC + 4 White, CMYK + 8 White (12 heads)     		CMYK + KYMC, CMYK + 4 White (8 heads)
    CMYK + KYMC + 4 White, CMYK + 8 White (12 heads)
    Max. Print size: Frame (2–3): 40 × 50 cm (~16 × 20 in)
    Frameless (2–3): 60 × 90 cm (~24 × 35 in)
    Frameless (1): 200 × 98 cm (~79 × 39 in)     		Frame (2–3): 40 × 50 cm (~16 × 20 in)
    Frameless (2–3): 60 × 90 cm (~24 × 35 in)
    Frameless (1): 200 × 98 cm (~79 × 39 in)
    Operating system: Linux OS
    RIP Software: aeoon RIP Software
    Interface: OPC-UA & REST
    Ink type: Water-based pigment ink
    Sales unit: 10 L canister
    Machine size: 410 × 290 × 200 cm (~161 × 114 × 79 in)
    Machine weight: 2000 kg / 4409 lb 2450 kg / 5400 lb
    Environmental conditions: Temp. 22 – 24 °C;
    Humidity 50 – 80 % non-condensing
    Electrical connections: 3 × 400/208 V + N + PE, 50/60 Hz (±5 %), max 6.3 kVA 3 × 400/208 V + N + PE, 50/60 Hz (±5 %), max 6.3 kVA + 4.3 kVA
    Compressed air: 7 bar – Quality Class 5;
    oil ≤ 25 mg/m³, dust ≤ 40 µm/10 mg/m³, water ≤ 7 DTP/7.8 g/m³;
    max 500 L/min

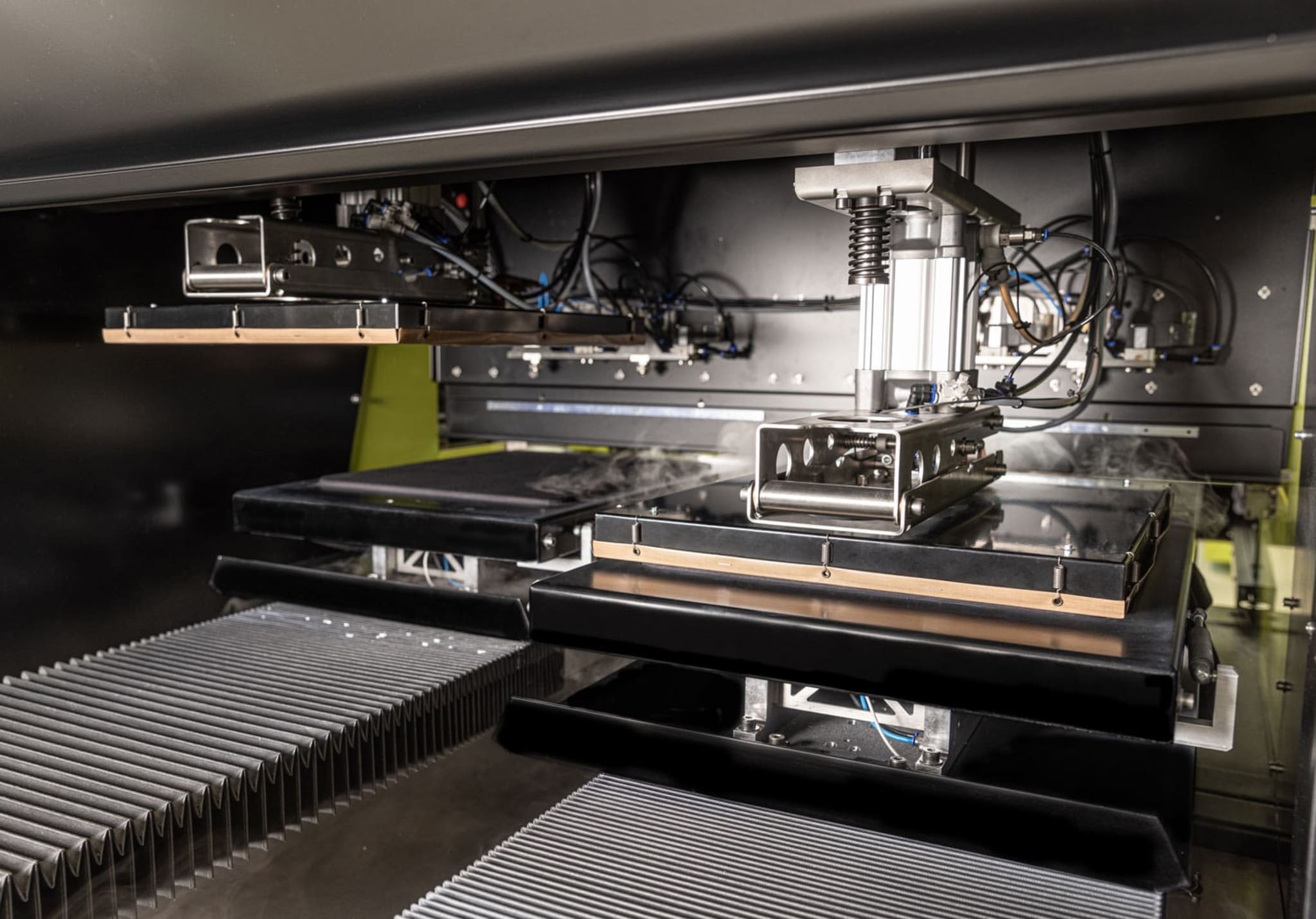

    Integrated Heat Press

    PLUS Highlight: Integrated Heat Presses

    • No press marks
    • Eliminate extra work steps
    • Boost wash-resistance via pre- & post-pressing
    Download Kyo DTG Brochure
