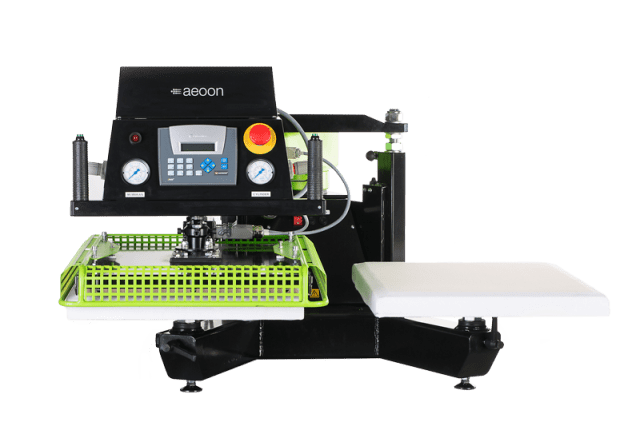

Double-Head Heat Press
The perfect low-cost solution for startups and small shops: our pneumatic double-head heat press is incredibly easy to operate and works with a variety of interchangeable plates.
- Effortless, intuitive operation
- Versatile plate compatibility
Pickup available
In stock at
Canberra Warehouse
Key Features
🔄
Double Membrane Plates: Two 40×50 cm plates for double productivity without extra power draw.
🖥️
PLC Unit Control: Customize time & ironing cycles per plate via programmable logic controller.
🦾
Bracket Design: Reinforced frame reduces wear, minimizing risk of structural failures.
⚖️
Self-Adjusting Plate: Automatically adapts to varying material thicknesses for perfect contact.
🔄
Rotatable Workplates: Swap or rotate plates on the fly; supports membrane & traditional setups.
🚀
Custom Pressure: Choose Maxima or Optima for the exact pressure range your job demands.
Additional Benefits
- Automatic plate movement with safety toggle
- Adjustable gap between plates
- Built-in safety frame & power-outage protection
- Lifelong guarantee on heated plate
- Digital dashboard with stats & counters
| Size of the heat plate: | 40 × 50 cm; 15.8 × 19.7 in |
| Temperature: | 0 – 230 °C; 32 – 446 °F |
| Time intervals: | 0 – 99 seconds |
| Max. material thickness: | 6 cm; 2.4 in |
| Max. pressure: | ~ 1 kg/cm² |
| Standard pressure: | 0.5 bar; ~ 0.5 kg/cm² |
| Pneumatic connection: | 2 – 10 bar |
| Max. pressure cylinder: | 8 bar |
| Max. pressure membrane plate: | 1 bar |
| Compressed air consumption: | 50 L/min |
| Machine size: | 105 × 85 × 60 cm; 41.8 × 33.5 × 23.6 in |
| Machine weight: | 95 kg; 207.24 lbs |
| Electrical connections: | 230 V, 2100 W; 10.04 kVA |
