Aeoon Technologies GMBH

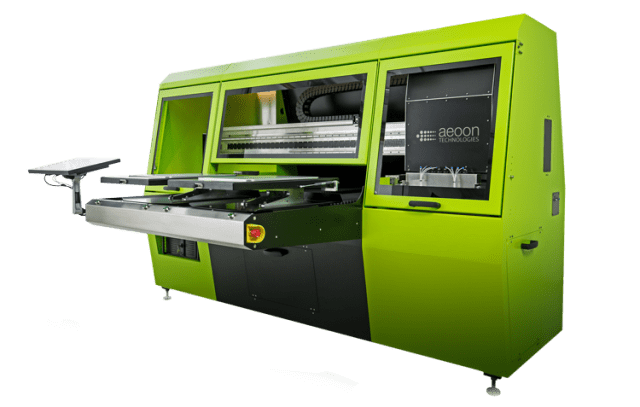

Aeoon-Compact DTG

ACOMPACT
Call for Quote

    High-Performance, Cost-Effective DTG Printing

    The aeoon Compact Series is a lightning-fast industrial textile printer designed for both newcomers and seasoned pros. You’ll enjoy exceptional print quality, dramatic ink savings, and a strong return on investment—all in a machine that’s easy to integrate into your workflow and built to grow with your business.

    Key Features

    ✓
    High-end print quality
    💰
    Low printing costs with high output
    🖨️
    Kyocera industrial print heads
    🔗
    Easy automated workflow connection
    🎛️
    Smarttouch central control unit
    🛒
    Huge selection of pallets
    📏
    Little space required
    ★
    PLUS highlight: Integrated heat presses

    Sample Prints

    Captain America Print
    Girl Sample Print
    Hulk Sample Print
    Colored Face Print
    Blue Guitar Print
    City Names Print

    Watch It In Action

    Compact Series Compact PLUS Series
    Industrial printheads: Kyocera: 4 or 8 Kyocera: 8
    AHP – Heat Press: No Integrated for each printing station;
    Press size: 40 × 50 cm; ~ 16 × 20 in
    Print stations: 2 2
    Color channels: CMYK (4 Print Heads)
    CMYK + KYMC, CMYK + 4 Weiß (8 Print Heads)     		CMYK + KYMC, CMYK + 4 Weiß (8 Print Heads)
    Max. Print size: with frame (2 stations): 40 × 50 cm; ~ 16 × 20 in
    Frameless (2 stations): 50 × 70 cm; ~ 20 × 28 in
    Frameless (2 stations): 120 × 80 cm; ~ 47 × 31 in     		with frame (2 stations): 40 × 50 cm; ~ 16 × 20 in
    Frameless (2 stations): 50 × 70 cm; ~ 20 × 28 in
    Frameless (2 stations): 120 × 80 cm; ~ 47 × 31 in
    Operating system: Linux OS
    RIP Software: aeoon RIP Software
    Interface: OPC-UA and REST
    Ink type: Water-based pigment ink
    Sales unit: 10 l canister
    Machine size: 320 × 244 × 180 cm / ~ 126 × 96 × 71 in 320 × 310 × 190 cm / ~ 126 × 122 × 75 in
    Machine weight: 1500 kg / 3307 lb 1900 kg / 4189 lb
    Environmental conditions: Temperature 22 – 24 °C;
    Humidity 50 – 80 % non-condensing
    Electrical connections: 3 × 400/208 V + N + PE, 50/60 Hz (± 5 %),
    max input: 6.3 kVA     		3 × 400/208 V + N + PE, 50/60 Hz (± 5 %),
    max input: 6.3 kVA + 4.3 kVA
    Compressed air: 7 bar – Quality Class 5;
    residual oil: 25 mg/m³;
    residual dust: 40 µm / 10 mg/m³;
    residual water: 7 DTP / 7.8 g/m³;
    max consumption: 500 l/min
    Integrated Heat Press

    PLUS Highlight: Integrated Heat Presses

    • No press marks
    • Saving additional work steps
    • Increased washing resistance through intermediate & post-pressing
